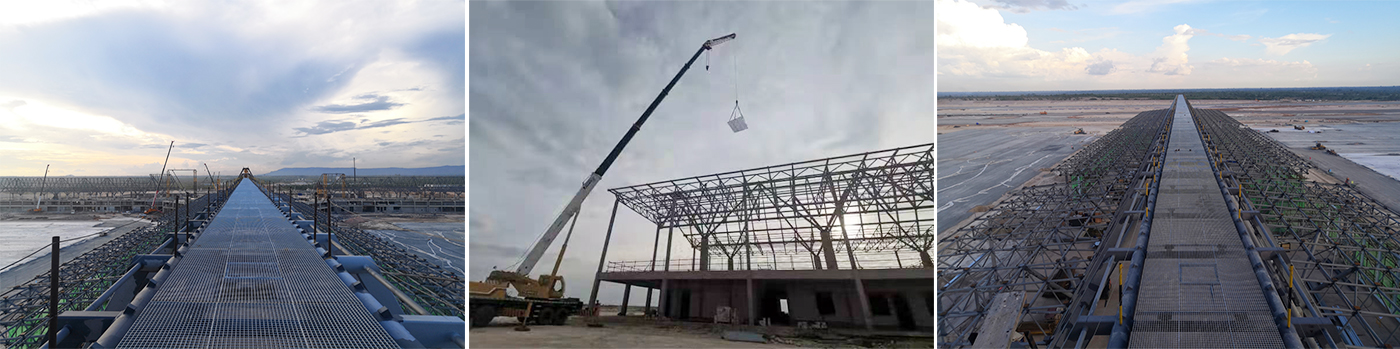

This customer was introduced by one of our loyal customers. He has great confidence in our design and production capabilities. We had a pleasant conversation and quickly reached a cooperation framework. The customer's biggest demand is beauty and the ability to withstand the load of workers' maintenance. The layout of the entire airport is in a cross shape. After receiving the task, our design team first tested the specifications of the steel grating. Because the beam spacing is 3 meters and the span is large, the customer was given a load-bearing flat steel height of 60mm and a thickness of 5mm. The hole spacing of the load-bearing flat steel is 40mm and the hole spacing of the crossbar is 50mm, which can meet both the load requirements and the lighting requirements. In order to facilitate workers' maintenance, our design team designed a manhole structure with angle steel at the appropriate place of the steel grating, and the customer was very satisfied with it. In order to facilitate the customer's installation, we divided the entire layout into four areas, and the gratings in each area were packaged separately, which brought great convenience to the on-site installation. The airport is now in operation, and the customer is very satisfied with our service capabilities.
HOT-SALE PRODUCT
Welded Steel Grating is a high-quality flooring and access material that consists of load -bearing bars and crossbars.
Standard steel grating, also known as Open Steel Grating , usually has a length ranging from 1000mm to 7500mm and a width ranging from 993 to 1000mm. Bearing Bars range from 20*3mm to 150*10mm. The surface is flat or serrated, and the surface treatment is galvanized, painted or untreated.
Press-Locked Bar Grating is a steel grating product that tightly locks the cross bars (typically shorter than the bearing bars) and bearing bars together using high-pressure mechanical equipment.
​Shunbo pressure welded grating is used in various industrial fields, municipal engineering, construction and offshore drilling platforms, etc. Each intersection of the Bearing Bar and the Cross Bar is continuously welded to form an extremely stable and durable structure.
