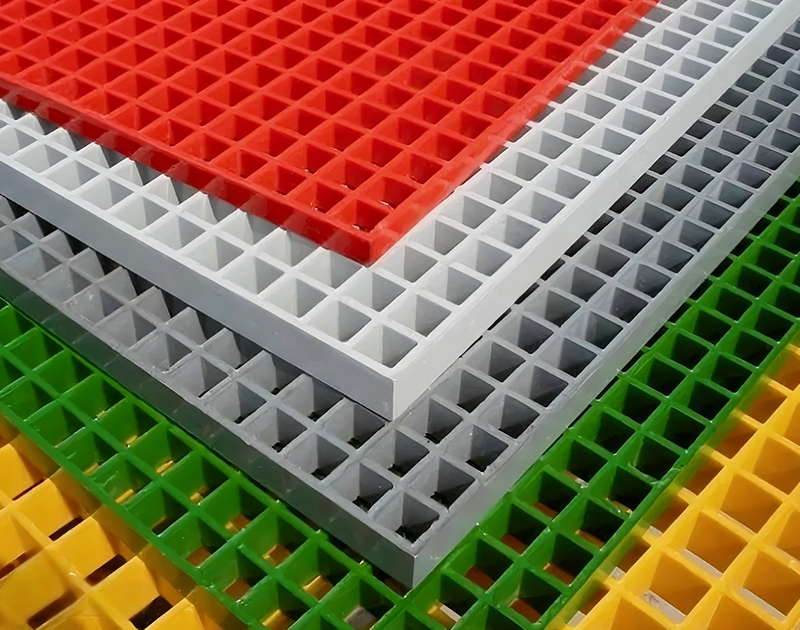

Fiber reinforced plastic grating, also known as FRP Grating, is a plate-shaped material with spaces made of glass fiber as reinforcement material and resin as matrix through special processing and compounding. It has multiple advantages such as light weight, high strength, corrosion resistance, insulation and anti-slip. This material is made by interlacing glass fibers and pouring resin into the whole mold to form a plate with regularly distributed rectangular or square spaces. It has bidirectional homogeneous mechanical characteristics, corrosion resistance and flame retardancy, non-magnetic insulation, bright colors, and a variety of styles and forms.
Technical Parameters
1. Material: Fiberglass is made of glass fiber, resin, calcium powder and color paste .
2. Product surface: smooth, sanded, checkered plate FRP Grating.
3. Product color: The product colors are extremely rich. The commonly used colors are red, yellow, green, blue, black, and gray. Color customization is also supported.
4. Edge style: There are two options for the edge style of the FRP grating : flush edge and tooth edge.

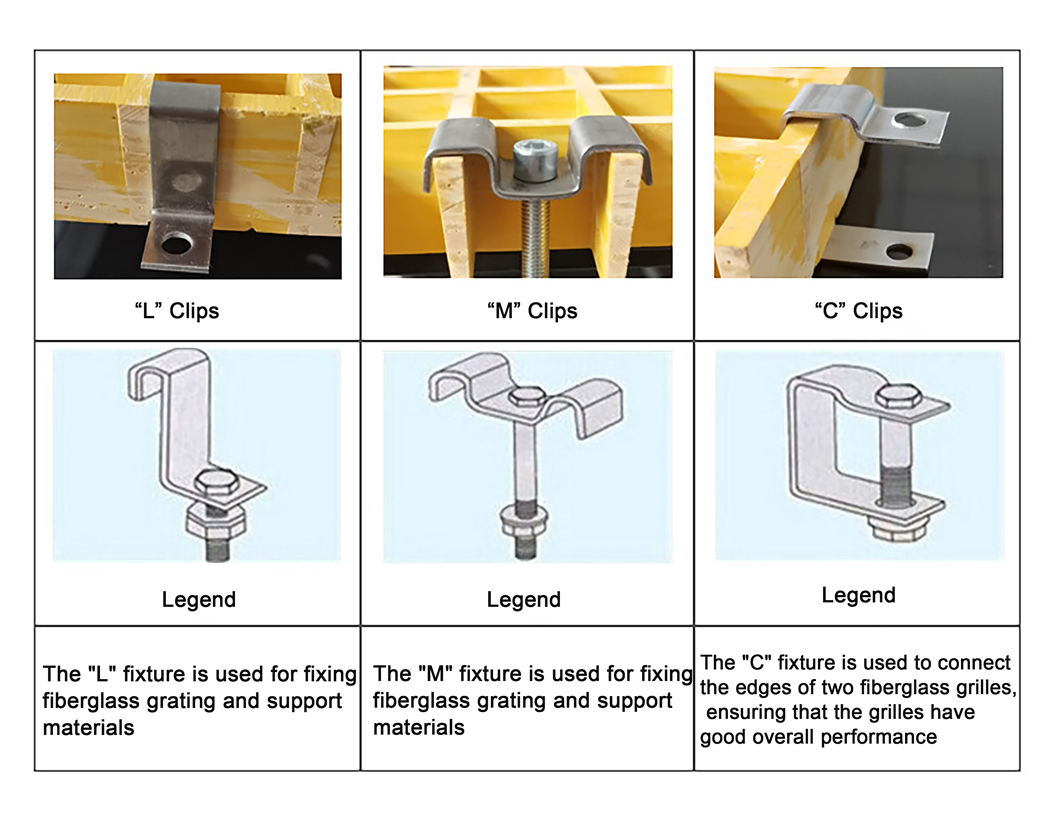

5. Installation method: Fiberglass grating is often fixed with mounting clips. Common types are: L-type, M-type, and C-type. The connection position of each type of mounting clip is different.
6. Resin type: The main resin types of FRP grating include orthophthalic resin, isophthalic resin and vinyl resin. Orthophthalic resin has ordinary corrosion resistance and is suitable for general corrosive environments; isophthalic resin has stronger corrosion resistance and is suitable for more severe environments; vinyl resin has higher corrosion resistance and heat resistance and is suitable for extreme environments.
| Size specifications of Fiberglass Grating | ||
| Specification and model | Grating size ( mm ) | thickness( mm ) |
| H25 Grating | 38*38*25 | Up6.5/Down5 |
| H25 Grating | 40*40*25 | Up6.5/Down5 |
| H30 Grating | 38*38*30 | Up7/Down5 |
| H38 Grating | 38*38*38 | Up7/Down5 |
| H50 Grating | 50*50*50 | Up8/Down5 |
| H30 Dense Grating | 19*19*30 | Up7/Down5 |
| H38 Dense Grating | 19*19*38 | Up7/Down5 |
| H50 Grating(heavy load) | 38*38*50 | Up9.6/Down6.5 |
| fibreglass reinforced plastic cover3# | 3mm | / |
| fibreglass reinforced plastic cover5# | 5mm | / |
| Whole board size | 1x4m, 1.22x3.66m | |
| Pedestrian loads generally choose H25 or H30, while vehicle loads need to choose H38 or H50 | ||
Customized Service
We understand that every project is unique, so we offer a comprehensive custom service to our customers . Our experienced engineers and designers will work closely with you to ensure the product meets your exact specifications.
1. Size and Shape: We can produce steel grating in any size and shape you require.
2. Load Capacity: Customize load capacity to match your specific application.
3. Surface Treatment: Choose from hot-dip galvanizing, painting or other special surface treatments.
4. Special Designs: We can create custom designs for complex applications or unique project requirements.
Application Fields
Industrial Platform

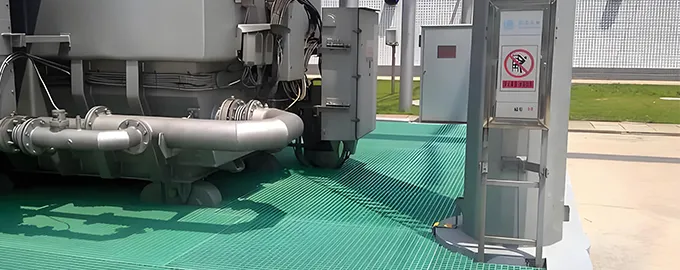

In petrochemical, power plants , sewage treatment plants and other factory workshops, fiberglass grating is used as an operating platform, stair treads, and trench covers to provide workers with a safe, non-slip walking surface. At the same time, it can effectively prevent acid and alkali liquid leakage from damaging the equipment below, ensuring the smooth progress of the production process.
Municipal Engineering

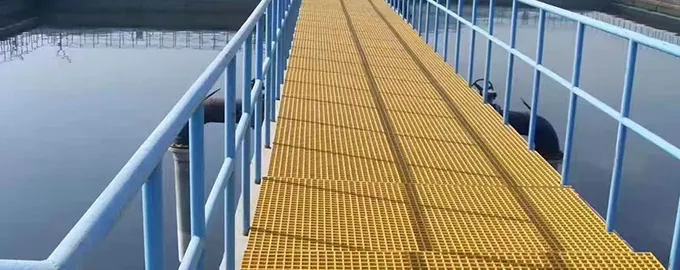

The ditch covers in urban drainage systems and the walkways in sewage treatment plants can be made of fiberglass gratings to resist sewage erosion, withstand frequent vehicle rolling, and reduce maintenance costs. In parks, seaside trails , tree pool gratings and other leisure places, their beautiful and non-slip properties can not only ensure the safety of tourists, but also complement the landscape.
Transportation
It is used for floor paving in cargo loading and unloading areas of bus stations, railway stations and port terminals , and in auxiliary passages and apron maintenance areas beside runways, meeting the stringent safety and weight requirements in the aviation field.
Product Advantages
Lightweight and high-strength
With a specific gravity of about 1.8, it weighs only 1/4 of steel and 2/3 of aluminum, but has amazing strength, which is ten times that of rigid polyvinyl chloride. Its absolute strength far exceeds that of aluminum and reaches the level of ordinary steel, which greatly reduces labor intensity and installation difficulty and speeds up project progress.
Corrosion Resistance
As a non-metallic polyester material, it is rust-proof, mildew-proof and rot-proof, and does not require paint protection. It can withstand corrosion from a variety of gaseous and liquid media and is maintenance-free. Compared with traditional metal grilles, it does not require regular inspection and maintenance.
Anti-fatigue
It has slight elasticity and as a working platform, it can reduce the fatigue of the workers' legs and back, improve working comfort, and thus improve work efficiency. It is highly recommended by ergonomics experts.
Easy installation
The weight of the components is greatly reduced, and the weight of the supporting structure is also reduced accordingly. No lifting equipment is required during installation, which is easy to operate and saves costs.
Safety
With smoldering and insulating properties, it will not generate sparks due to collision during installation and use, and is suitable for use in flammable and explosive environments. In addition, the grille with an anti-slip surface can prevent slipping and reduce the risk of accidents.
FAQ
MOQ
Our MOQ is flexible and depends on the specific product and customization requirements. Generally speaking, we strive to meet both small and large order requirements to meet the different needs of our customers.
After-Sales Service
We are committed to providing excellent after-sales service. Our team is always available to answer questions and address any concerns you may have. If any issues arise with the product, we will resolve them quickly to ensure your satisfaction.
Lead Time
Delivery time depends on order size and complexity. We strive to deliver your order as quickly as possible without compromising quality. Our production and logistics teams work efficiently to ensure on-time delivery.
Logistics
We have established partnerships with reliable logistics providers to ensure safe and timely delivery of our products. We can ship steel gratings to any location worldwide and our team will take care of all the logistical details for you.
