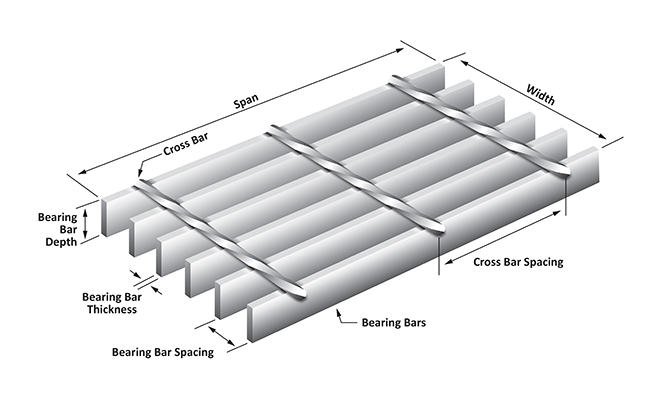

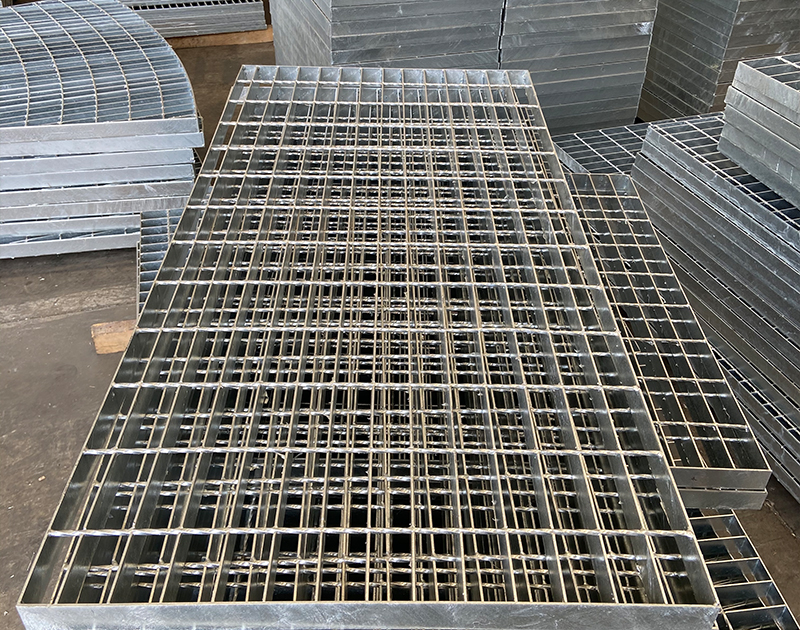

Welded Steel Grating is a high-quality flooring and access material that consists of load -bearing bars and crossbars. The load-bearing bars, typically made of carbon steel or stainless steel, provide the primary support for the structure, while the crossbars are welded at specific intervals to ensure stability and strength. Our welded steel gratings are available in a variety of sizes and configurations to meet the specific needs of your project.
Technical Parameters
1. Material : carbon steel, low alloy steel, stainless steel ( 304/316 ).
2. Manufacturing process: Welded steel grating can be divided into press welding type and press locking type according to the manufacturing method.
3. Surface treatment : hot-dip galvanizing, powder coating or painting for enhanced corrosion protection .
4. Crossbar spacing: 50mm&100mm.
| Common specifications of welded steel grating | ||||
| serial number | Specifications of load-bearing bars (mm) | Crossbar diameter (mm) | Bearing bar spacing (mm) | Crossbar spacing (mm) |
| 1 | 20 X 3 | 6 | 20/30/40 | 50/ 100 |
| 2 | 20 x 5 | 6 | 20/30/40 | 50/100 |
| 3 | 30 X 3 | 6 | 20/30/40 | 50/100 |
| 4 | 30 X 4 | 6 | 20/30/40 | 50/100 |
| 5 | 30 X 5 | 6 | 20/30/40 | 50/100 |
| 6 | 32 X 3 | 6 | 20/30/40 | 50/100 |
| 7 | 32 X 5 | 6 | 20/30/40 | 50/100 |
| 8 | 35 X 3 | 6 | 20/30/40 | 50/100 |
| 9 | 35 X 5 | 6 | 20/30/40 | 50/100 |
| 10 | 40 X 3 | 6 | 20/30/40 | 50/100 |
| 11 | 40 X 4 | 6 | 20/30/40 | 50/100 |
| 12 | 40 X 5 | 6 | 20/30/40 | 50/100 |
| 13 | 45 X 5 | 8 | 30/40/50 | 50/100 |
| 14 | 50 X 5 | 8 | 30/40/50 | 50/100 |
| 15 | 55 X 5 | 8 | 30/40/50 | 50/100 |
| 16 | 60 X 5 | 8 | 30/40/50 | 50/100 |
| 17 | 65 X 5 | 8 | 30/40/50 | 50/100 |
| 18 | 70 X 5 | 8 | 30/40/50 | 50/100 |
| 19 | 70 X 6 | 8/10 | 30/40/50 | 50/100 |
| 20 | 75 X 6 | 8/10 | 40/50 | 50/100 |
| 21 | 80 X 8 | 8/10 | 40/50 | 50/100 |
| 22 | 90 X 8 | 8/10 | 40/50 | 50/100 |
| 23 | 100 X 8 | 8/10 | 40/50 | 50/100 |
| 24 | 120 X 8 | 8/10 | 40/50 | 50/100 |
| 25 | 130 X 8 | 8/10 | 40/50 | 50/100 |
| 26 | 150 X 8 | 8/10 | 40/50 | 50/ 100 |
Customized Service
We understand that every project is unique, so we offer a comprehensive custom service to our customers . Our experienced engineers and designers will work closely with you to ensure the product meets your exact specifications.
· Custom Sizes : Whether you require a non-standard length, width or shape, our advanced manufacturing equipment can produce steel grating to the exact dimensions of your project. If you have an irregularly shaped platform in your facility, we can custom cut steel grating to fit precisely.
· Special surface treatments : In addition to the standard hot-dip galvanizing and painting finishes, we can also provide other specialized surface treatments. For example, if your project is located in an extremely corrosive marine environment, we can provide a marine-grade epoxy coating for added protection. Or, if you want the steel grating to match the exterior of your building, we can paint it in a custom color.
· Unique Designs : Our team of engineers and designers can work with you to develop custom steel grating patterns and designs. You can choose from different bar arrangements, perforation patterns, and even incorporate your company logo or decorative elements into the steel grating. This is especially popular in architectural projects where the steel grating is used as a prominent design feature.
Product Features
High strength
Welded steel grating can withstand large static and dynamic loads, improving stability and safety.
Corrosion resistance
The welded steel grating is hot-dip galvanized or surface sprayed , which has good anti-corrosion performance and extends the service life.
Easy to install
The size and shape of welded steel grating can be customized according to needs, which is easy to transport and install.
Beautiful and practical
The appearance is beautiful and elegant, and it blends with various architectural styles to enhance the overall beauty of the building.
Environmentally friendly materials
Steel is completely recyclable, supporting environmental protection and circular economy. At the same time, the product has a long life and reduces the frequency of replacement.
Application Fields

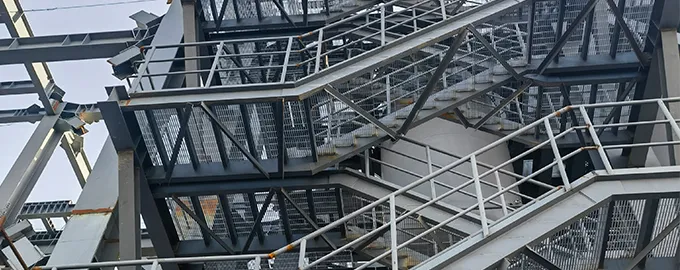

1. Industrial platforms and walkways : Used as operating platforms, equipment platforms and stair walkways in factories, workshops, warehouses and other places, welded steel gratings can ensure the safety of workers.
2. Sewage treatment and environmental protection projects : Welded steel gratings are used for the water inlet and outlet of sewage treatment plants and waste gas treatment facilities in environmental protection projects.
3. Oil field and chemical industry : as drilling platform, tanker unloading platform and chemical plant operating platform, it can adapt to the harsh chemical environment.
4. Power and communication facilities : Serves as the bearing support for power station inspection platforms, cable trench covers and communication equipment .
5. Architecture and decoration : Welded steel grating is used as building exterior wall decoration, interior partition and ceiling, adding a modern and artistic atmosphere.
FAQ
MOQ
Our MOQ is flexible and depends on the specific product and customization requirements. Generally speaking, we strive to meet both small and large order requirements to meet the different needs of our customers.
After-Sales Service
We are committed to providing excellent after-sales service. Our team is always available to answer questions and address any concerns you may have. If any issues arise with the product, we will resolve them quickly to ensure your satisfaction.
Lead Time
Delivery time depends on order size and complexity. We strive to deliver your order as quickly as possible without compromising quality. Our production and logistics teams work efficiently to ensure on-time delivery.
Logistics
We have established partnerships with reliable logistics providers to ensure safe and timely delivery of our products. We can ship steel gratings to any location worldwide and our team will take care of all the logistical details for you.
