Rivet bar grating are bearing bar, reticuline bar and high strength rivets. Under the same span and depth conditions, rivet grating has higher bearing capacity than welded steel grating and press-locked steel grating.
Riveted bar grating is a high strength joint that is sealed together between the bearing bar and reticuline bar using rivets through hydraulically and mechanically operated riveting tools, respectively, to protect the grating from residual stresses that cause warping and joint failure.
Technical Parameters
1. Material : Carbon steel , stainless steel or aluminum .
2. Surface treatment: Hot-dip galvanizing, electro-galvanizing or spraying treatment can be selected , and anodizing treatment can be provided for aluminum .
3. Bear Bar Type: Flat type, Tooth type .
4. Riveted grating is available in light, heavy and aluminum materials to suit different load-bearing capacity requirements.
Light Duty: Light Duty Carbon Riveted Grating includes bar sizes of 3/4” x 1/8” up to 2-1/2” x 3/16”. It is primarily used for pedestrian traffic and for light, tired, rolling traffic such as carts, dollies, and hand trucks.
Heavy Duty: Heavy Duty Carbon Riveted Grating includes bar sizes of 2-1/2” x 3/16” up to 5” x 3/8”. It is primarily used where heavy vehicular traffic is utilized including industrial plants utilizing fork lift trucks, highways, and bridges.
Aluminum: Aluminum Riveted Grating offers a corrosion resistant alternative to carbon. It is lightweight and strong. It is highly utilized in corrosive environments including food/beverage preparation, water vessels, and sewage treatment facilities. Sizes parallel Light Duty Carbon Grating provided above.

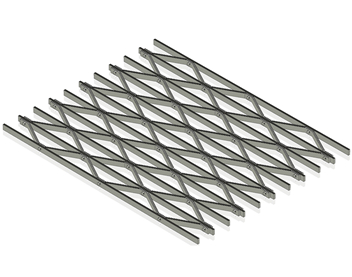

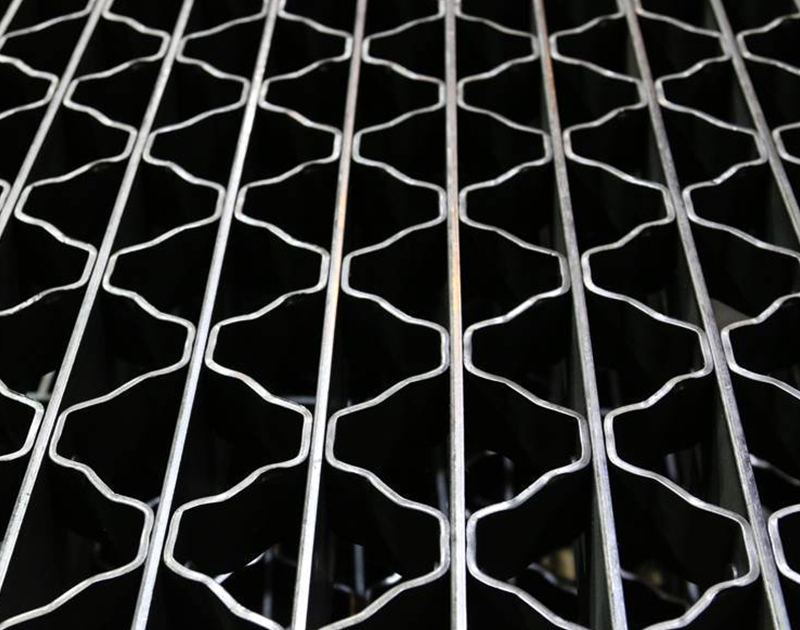

5. We can furnish riveted grating with either straight or crimped reticuline bars.
 |  |  |

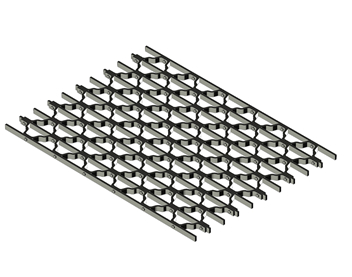

| Riveted Grating with Smooth Surface | Riveted Grating with Serrated Surface | Riveted Grating with Serrated Surface |
 |  |  |

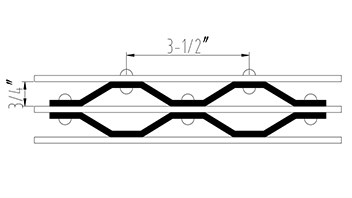

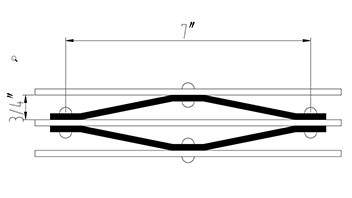

| Crimped Reticuline Grating | 12-R-3.5 | 12-R-7 |
 |  |  |

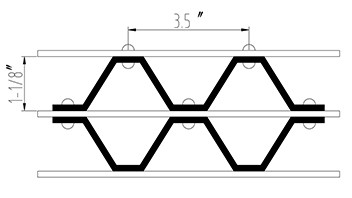

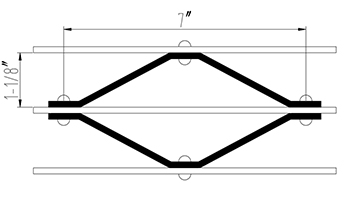

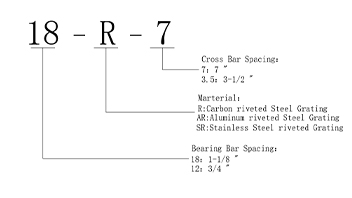

| 18-R-3.5 | 18-R-7 | Model Description |
| Table 1: Specification Sheet of RG18 Riveted Grating | ||||
| Item | Bearing Bar | Crimp Bar | Bearing Bar Spacing | Cross Bar Spacing |
| RG18-01 | 1” × 1/8” | 3/4” × 1/8” | 1-1/8” | 3", 7" |
| RG18-02 | 1” × 3/16” | 3/4” × 1/8” | 1-1/8” | 3", 7" |
| RG18-03 | 1-1/4” × 1/8” | 3/4” × 1/8” | 1-1/8” | 3", 7" |
| RG18-04 | 1-1/4” × 3/16” | 3/4” × 1/8” | 1-1/8” | 3", 7" |
| RG18-05 | 1-1/2” × 1/8” | 1” × 1/8” | 1-1/8” | 3", 7" |
| RG18-06 | 1-1/2” × 3/16” | 1”寸 × 1/8” | 1-1/8” | 3", 7" |
| RG18-07 | 1-3/4” × 3/16” | 1” × 1/8” | 1-1/8” | 3", 7" |
| RG18-08 | 2” × 3/16” | 1” × 1/8” | 1-1/8” | 3", 7" |
| RG18-09 | 2-1/4” × 3/16” | 1” × 1/8” | 1-1/8” | 3", 7" |
| RG18-10 | 2-1/2” × 3/16” | 1” × 1/8” | 1-1/8” | 3", 7" |
| Table 2: Specification Sheet of RG12 Riveted Grating | ||||
| Item | Bearing Bar | Crimp Bar | Bearing Bar Spacing | Cross Bar Spacing |
| RG12-01 | 1" × 1/8" | 3/4" × 1/8" | 3/4" | 3", 7" |
| RG12-02 | 1" × 3/16" | 3/4" × 1/8" | 3/4" | 3", 7" |
| RG12-03 | 1-1/4" × 1/8" | 3/4" × 1/8" | 3/4" | 3", 7" |
| RG12-04 | 1-1/4" × 3/16" | 3/4" × 1/8" | 3/4" | 3", 7" |
| RG12-05 | 1-1/2" × 1/8" | 1" × 1/8" | 3/4" | 3", 7" |
| RG12-06 | 1-1/2" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
| RG12-07 | 1-3/4" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
| RG12-08 | 2" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
| RG12-09 | 2-1/4" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
| RG12-10 | 2-1/2" × 3/16" | 1" × 1/8" | 3/4" | 3", 7" |
Customized Service
We understand that every project is unique, so we offer a comprehensive custom service to our customers . Our experienced engineers and designers will work closely with you to ensure the product meets your exact specifications.
1. Steel grating in any size and shape you require .
2. Load Capacity: Customize load capacity to match your specific application.
3. Surface Treatment: Choose from hot-dip galvanizing, painting or other special surface treatments.
4. Special Designs: We can create custom designs for complex applications or unique project requirements.
Product Features
Riveted bar grating has excellent resistance to impact, fatigue and repeated loads due to its special structure.

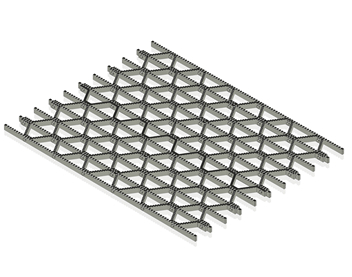

Riveted bar gratings are available with either a smooth or serrated surface and are ideal for high traffic areas. If your application is prone to slipping and sliding, we recommend serrated bar gratings.
Riveted bar grating is the perfect solution for rolling stock and wheeled equipment (especially equipment with castors) as well as walkways where maximum comfort is required.
Riveted stainless steel grating has both the strength of riveting and the durability and corrosion resistance of stainless steel. It is very suitable for outdoor and marine environments and can be used in chemical processing plants, food processing plants and various warehouse storage systems.
Application Fields

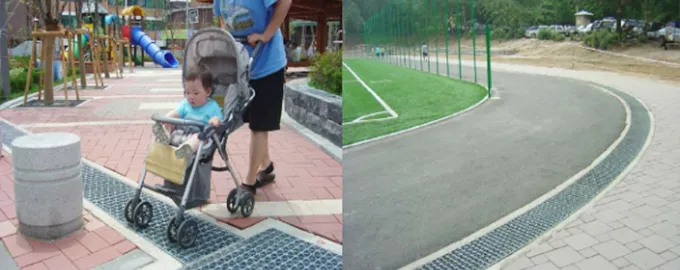

1. Riveted bar gratings have smooth and serrated surfaces and are ideal for applications where high strength and stiffness are required, such as high traffic pedestrian areas, bridge walkways or corridors for light rolling loads such as trolleys, forklifts and pallet handling.
2. Riveted bar grating can be applied to almost any type of flat surface. For example: ramps, loading docks, and industrial and commercial floors.

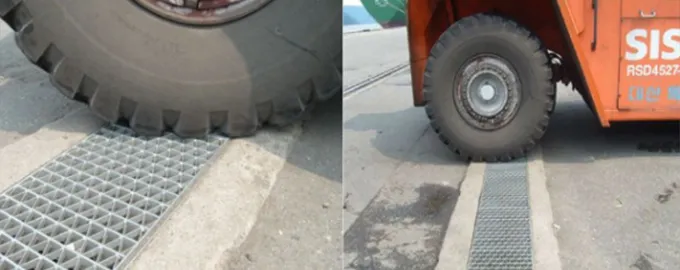

3. Heavy duty Riveted grating is widely used in bridge paving, highway ditches, airport terminal ramps, commercial entrances, etc. due to its excellent impact resistance and fatigue load resistance.
