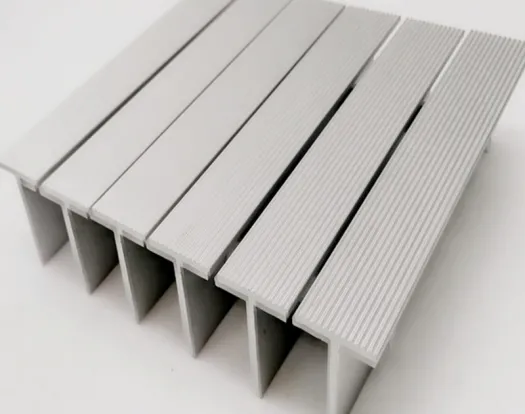

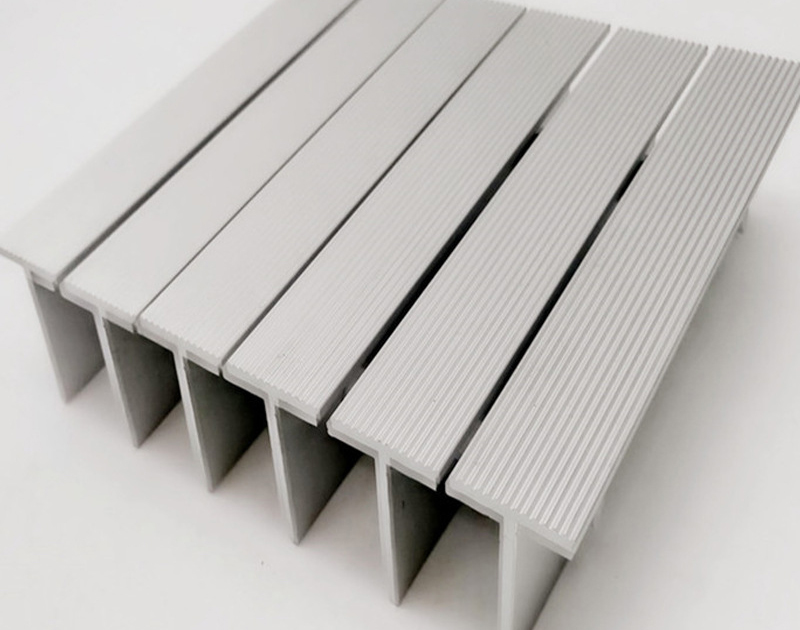

T Bar Steel Grating is made of high-quality aluminum alloy through advanced extrusion technology, which is an innovative upgrade of decorative materials. The unique T-shaped design increases the support and contact surface, making walking and stepping comfortable, and high heels and wheelchairs pass smoothly. The surface is treated with wire teeth, which is excellent in anti-slip, and the minimum gap is 2mm, which is both safe and beautiful. It has a mesh structure, rod penetration, extrusion molding, light weight and high strength, corrosion resistance, suitable for marine engineering, architectural decoration and other fields, and is very popular.
Technical Parameters
1. Material Specifications : T Bar A luminium Steel Grating is mostly made of 6063 aluminum alloy, and 6061 or 6082 aluminum alloy can be selected as needed. The thickness of the grating bar is 4mm - 6mm, the width is 1m, and the length is 6m, which is convenient for large-area installation.
2. Dimensional accuracy : The mold is precise and the workmanship is rigorous. The spacing is optional: 30mm, 40mm, 50mm, and 60mm. The splicing is seamless, the length error is small, and the installation flatness is guaranteed.
3. Surface treatment : polishing, anodizing , painting and powder coating.
4. Load Capacity : T Bar Steel Grating is designed in accordance with international standards to meet the needs of different application scenarios.
| product code | Beraing Bar | Bearing Bar spacing | maximum span4Kpa deflection 5mm | W eight Kg/㎡ | T-shaped aluminum gratingSafety bearing and deflection table | ||||||||||||
| span | |||||||||||||||||
| 600 | 750 | 900 | 1050 | 1200 | 1350 | 1500 | 1650 | 1800 | 1950 | 2100 | 2400 | ||||||
| SGT256 | 25X6 | 30 | 1120 | 9.72 | U | 30.25 | 24.17 | 20.15 | 17.28 | 15.13 | |||||||
| D | 2.92 | 4.57 | 6.57 | 8.96 | 11.70 | ||||||||||||
| SGT326 | 32X6 | 30 | 1320 | 11.42 | U | 47.25 | 37.77 | 31.50 | 26.99 | 23.60 | 21.0 | ||||||
| D | 2.33 | 3.65 | 5.25 | 7.16 | 9.35 | 11.86 | |||||||||||
| SGT406 | 40X6 | 30 | 1495 | 13.18 | U | 68.03 | 54.44 | 45.33 | 38.87 | 34.03 | 30.25 | 27.19 | |||||
| D | 1.95 | 3.05 | 4.39 | 5.69 | 7.79 | 9.88 | 12.19 | ||||||||||
| SGT456 | 45X6 | 30 | 1670| | 14.94 | U | 92.59 | 74.07 | 61.70 | 52.90 | 46.29 | 41.18 | 37.06 | 33.65 | 30.88 | |||
| D | 1.67 | 2.6 | 3.76 | 5.13 | 6.68 | 8.45 | 10.46 | 12.65 | 15.06 | ||||||||
| SGT506 | 50X6 | 30 | 1855 | 16.75 | U | 120.94 | 96.76 | 80.63 | 69.13 | 60.46 | 53.77 | 48.40 | 44.00 | 40.3 | 37.19 | ||
| D | 1.47 | 2.29 | 3.30 | 4.47 | 5.84 | 7.41 | 9.14 | 11.07 | 13.15 | 15.44 | |||||||
| SGT556 | 55X6 | 30 | 2030 | 18.31 | U | 153.07 | 122.47 | 102.07 | 87.47 | 76.56 | 68.03 | 61.23 | 55.68 | 51.03 | 47.1 | 43.75 | |
| D | 1.29 | 2.03 | 2.92 | 3.98 | 5.20 | 6.57 | 8.12 | 9.83 | 11.7 1 | 13.7 4 | 15.95 | ||||||
| SGT656 | 65X6 | 30 | 2210 | 20.26 | U | 188.97 | 151.20 | 126.0 | 108.0 | 94.5 | 83.97 | 75.60 | 68.70 | 63.00 | 58.17 | 54.00 | 47.26 |
| D | 1.17 | 1.83 | 2.64 | 3.58 | 4.67 | 5.92 | 7.31 | 8.84 | 10.54 | 12.37 | 54.00 | 47.26 | |||||
| U- uniform load (Kpa) D- deflection (mm) | |||||||||||||||||
Customized Service
Professional design team, provide customization according to your needs. From grille spacing, size, cross section, to color and texture, everything can be tailored, detailed communication ensures the implementation of creativity.
Application Fields
1 Commercial space : shopping malls, hotel lobbies, etc., T Bar Steel Grating uses anti-slip and large support surface design to create eye-catching floor and ceiling decorations, helping businesses attract customers and enhance their image.
2. Office space : open office area and conference room with sound absorption and noise reduction, simple appearance, creating a comfortable and efficient working space.
3. Transportation hubs : airports, high-speed rail station waiting areas, etc., quick to install, able to withstand heavy traffic, strong and durable to ensure safe operation.

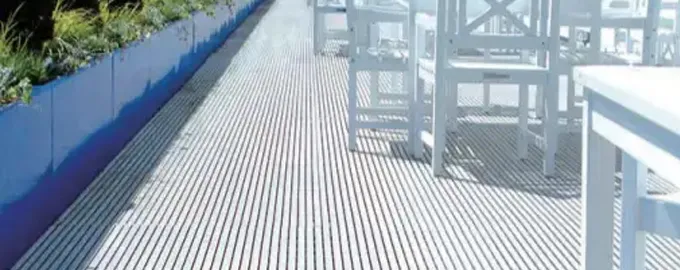

4. Marine engineering and outdoor facilities : offshore platforms and coastal trails are resistant to corrosion and provide strong support and beauty for outdoor facilities.
5. Industrial buildings : industrial platforms, ladder steps, handrails, passage floors.
Product Advantages
Anti-slip and comfortable
T Bar Steel Grating wire tooth treatment combined with a large support surface, strong anti-slip, comfortable to step on, suitable for crowded places.
Easy installation
T Bar Steel Grating is extruded and has standard dimensions. Workers do not need complicated tools and can install it quickly, saving time and manpower.
Energy saving and environmental protection
Aluminum alloy is recyclable, has good thermal conductivity and helps with temperature control, and is paired with energy-saving lamps to reduce energy consumption.
Durable
Made of high-quality aluminum alloy, it is wear-resistant and deformation-resistant, with long-lasting surface protection, long service life and worry-free maintenance.
